Wireless Software Stacks

Azcom Technology provides carrier-grade NB-IoT, LTE and HSPA+ Physical Layer software and L2/L3 Protocol stack software for C-RAN and Small Cell deployments. Azcom also offers LTE UE protocol stack software, suitable for applications such as relay nodes, UE modems and multi-UE simulators.

All software stacks feature modular software architecture and support industry standard Small Cell Forum interfaces. This ensures easy introduction of customer-specific features and integration of third party components. To reduce development time, software packages are also available pre-integrated with Azcom’s baseband board. All software packages are extensively tested (including 3GPP conformance) for optimal performance and stability.

Azcom provides full-cycle software development services for any customizations that may be required to suit customers’ needs.

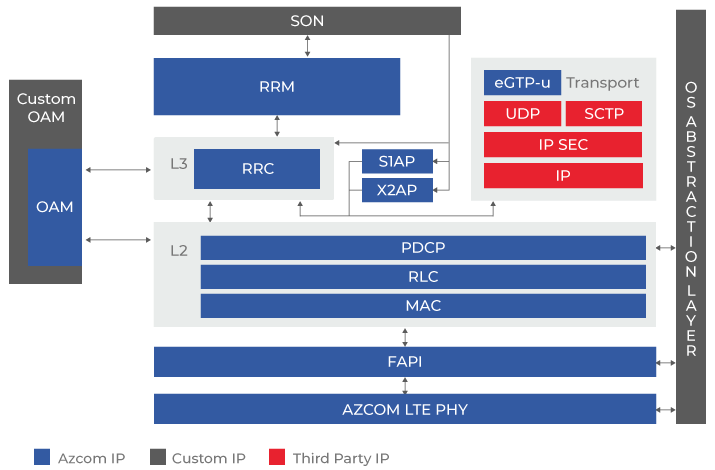

LTE eNodeB PHY and Protocol Stack

Azcom Technology offers a carrier-grade LTE PHY software package conforming to 3GPP 36.104 and 36.141 and a complete Protocol Stack suite enabling the creation of C-RAN and Small Cell solutins, both FDD and TDD.

Azcom Technology offers a carrier-grade LTE PHY software package conforming to 3GPP 36.104 and 36.141, and a complete Protocol Stack suite enabling the creation of C-RAN and Small Cell solutions, both FDD and TDD.

The LTE PHY software implements a modular, scalable architecture that fully exploits the Texas Instruments® Keystone II System on Chip technology. A flexible design and the standard interfaces (FAPI, CPRI) allow easy porting and integration with customer owned software components. We also offer proprietary solutions in areas such as advanced receivers.

The Protocol Stack control and data planes are optimized to meet the 3GPP LTE performance requirements in terms of throughput, latency and data processing. The O&M plane includes a proprietary agent for flexible configuration and fully customizable Radio Resource Management (RRM) for UL Control signalling resource configuration, link adaptation and UL/DL power control. Clearly defined APIs accelerate building of application extensions, like operator-specific MAC scheduler, RRM and SON modules.

Azcom LTE eNodeB software stacks are field-deployable. Rigorous testing, from module testing to system integration testing, coupled with interop testing with commercial UEs and Evolved Packet Core (EPC) ensures high software quality and reliable performance.

The LTE PHY and Protocol Stack software is available as a standalone package as well as pre-integrated with the Azcom C-RAN and Small Cell platforms.

Contact us to get more information.

Main Features

  • Carrier grade 3GPP R13 compliant
  • FDD & TDD Support
  • Up to 4×4 MIMO
  • Scalable bandwidth up to 20 MHz
  • 300/75 Mbps peak data rates
  • High speed mobility: Extended Typical Urban 300Hz
  • Up to 128 Active Users (16 scheduled users per TTI @ PHY )
  • Buffer-Aware Adaptive Metric ccheduler provided, optional Proportional Fair scheduler available
  • SNMP Based remote management interface
  • ASN.1 library from Objectve Systems
  • Small Cell Forum API PHY/L2 interface
  • Comprehensive testing (OTA, Conformance, Automated)

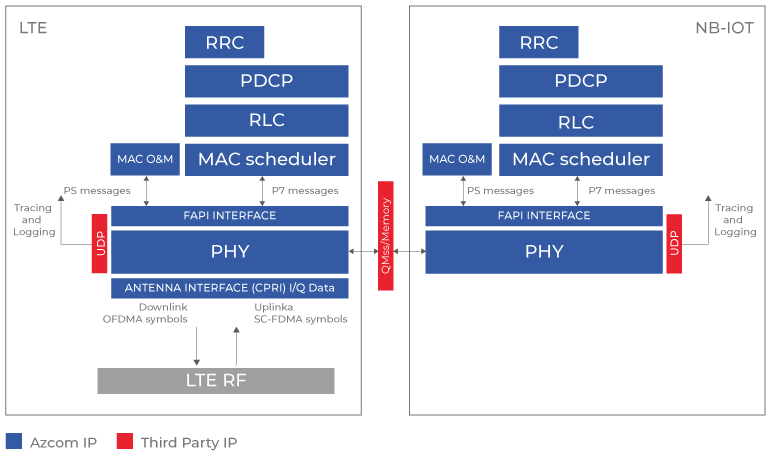

NB-IoT eNodeB PHY and Protocol Stack

The Azcom NB-IoT PHY and Protocol Stack software extends the capability of its LTE stack to support in-band and guard band NB-IoT functionality for dual mode (LTE and NB-IoT) operation.

The NB-IoT PHY software implements baseband processing algorithms and procedures specified in 3GPP Release 13 (TS 36.211, TS 36.212, TS 36.213 and TS 36.214). The NB-IoT Protocol Stack, including an NB-IoT specific scheduler, is compliant to 3GPP TS 36.321, 36.322 and 36.323.

Azcom NB-IoT eNodeB software stacks are field-deployable and rigorously tested from functionality point of view and interoperability with commercial UEs and core networks.

The NB-IoT PHY and Protocol Stack software is available as a standalone package as well as pre-integrated with the Azcom C-RAN and Small Cell platforms.

Main Features

  • 3GPP R13 compliant (13.5.0)
  • Dual Mode LTE + NB-IoT
  • 26/66 Kbps peak data rates
  • 500+ Active Users (12/48 UE/TTI)
  • 15 kHz and 3.75 kHz subcarrier spacing
  • In-band and Guard Band allocation modes
  • Support of Coverage Enhancement 0, 1 and 2
  • Dedicated Scheduler
  • eDRX and PSM support
  • Small Cell Forum API PHY/L2 interface

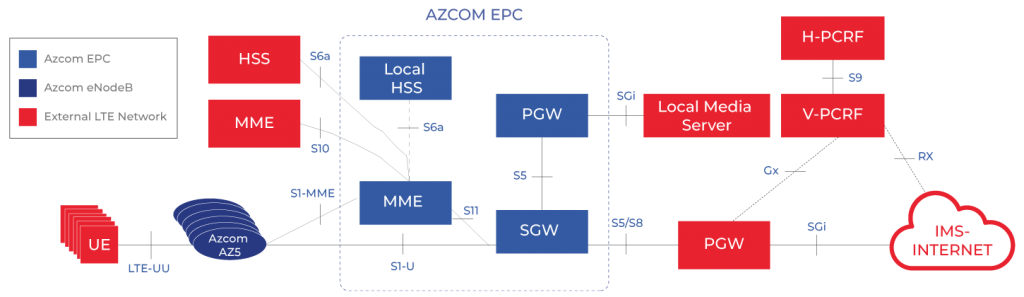

LTE EPC Software

Azcom’s LTE Evolved Packet Core (EPC) software features a flexible and scalable architecture. The Linux-based software runs on Intel x86 architectures, ranging from small system-on-module (SOM) to large servers and Linux virtual machines (VMs). Various EPC components, viz. Mobility Management Entity (MME), Serving Gateway (SGW), Packet Data Network Gateway (PGW) and local Home Subscriber Server (HSS) can be distributed across physical and virtual resources. This makes the EPC easy to deploy, configure and manage, locally and remotely.

Customizable solutions built around the Azcom EPC include closed isolated private networks with private USIMs and public networks in remote locations with public UEs. A mixed scenario with access to both private and public networks is also supported with both Home Routed Traffic (HRT) and Local Break Out (LBO).

Contact us to get more information.

Main Features

  • 3GPP R10 compliant
  • Key EPC nodes: MME, S-GW, P-GW and HSS
  • Multiple PGWs supported
  • External S6a and S10 interfaces for open private network scenarios
  • Handling of 20+ connected eNodeBs and 1000+ connected devices
  • XOR and Milenage USIM authentication algorithms
  • UE Aggregate Maximum Bit Rate (UE-AMBR) and APN-AMBR
  • Support for Packet filtering and Deep Packet Inspection

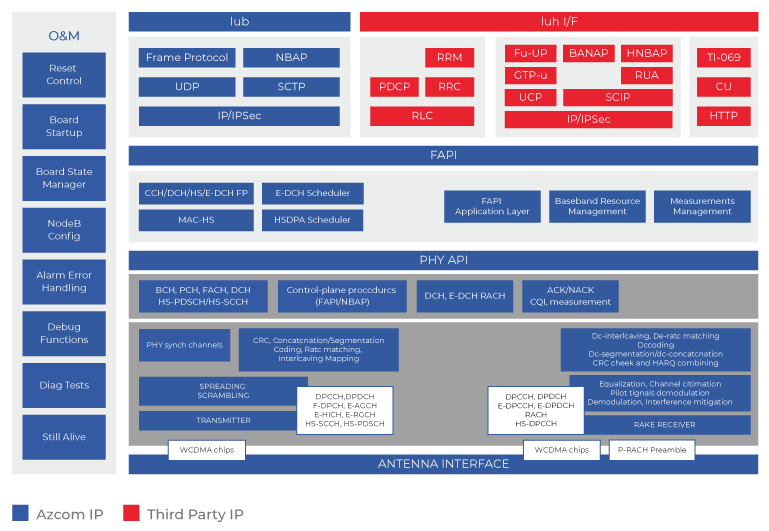

HSPA+ NodeB PHY and Protocol Stack

Azcom Technology offers carrier grade HSPA+ PHY and protocol stack software optimized for small cells deployments. The software is field-proven and commercially deployed by tier-1 vendors.

The software fully exploits the capabilities of the Texas Instruments® Keystone II MultiCore architecture and the latest TMS320TCI66x digital signal processor (DSP) cores. The software design offers high performance and flexibility. The modular architecture ensures scalability and eases the introduction of customer specific features. Standard interfaces allow easy integration with third party components and applications. Clearly defined FAPI or NBAP interfaces enables easy integration with any 3G Iuh protocol stack or RNC.

HSPA+ software supports different multi-core architectures according to customer performance and capacity requirements. Mixed-mode architecture with LTE is also supported (either integrated with Azcom LTE software or with a third party solution).

The HSPA+ software test framework is rigourous and includes conformance tests for 3GPP performance requirements (3GPP TS 25.104).

Contact us to get more information.

Main Features

  • 3GPP R8 compliant
  • Complete NodeB SW supporting both Iub and FAPI interfaces
  • Supports 42/11 Mbps data rates
  • Supports 64 UEs easily scalable to higher numbers
  • Conformance tested (3GPP 25.104)
  • End-to-end tested with real RNCs, UEs and core network
  • Commercially deployed

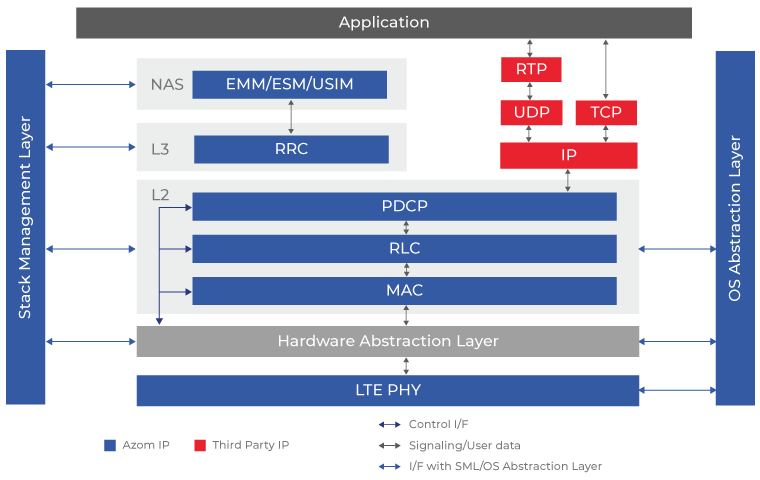

LTE UE Stack

Azcom provides a full software stack for LTE UE, including the Physical, MAC, RLC, PDCP, RRC and NAS layers. Flexible software design allows a broad-range of deployment scenarios, such as multi-UE simulators, special purpose devices for Air-to-Ground modems, small cell backhaul solution, relay nodes and tactical LTE terminals.

The stack is software defined and therefore easily customizable for specific applications requirements, e.g. very high speed, proprietary cyphering or anti jamming measures, as well as other non-standard features.

High performance and reliability is assured through rigorous functional, performance and interop testing.

Contact us to get more information.

Main Features

  • 3GPP release 9 compliant
  • FDD / TDD mode
  • Full stack available (including NAS)
  • Up to CAT 5
  • Supported bandwidths: 5-10-15-20 MHz
  • Optimized for TI Keystone II architecture
  • Easy to customize and upgrade
  • Comprehensive and configurable debug infrastructure
